Designer:
Builder:
Year:
Construction:
Model:
Rig:
Keel:
Hull Number:
Documented: |
William Shaw
Pearson Yachts
1978
Fiberglass
424

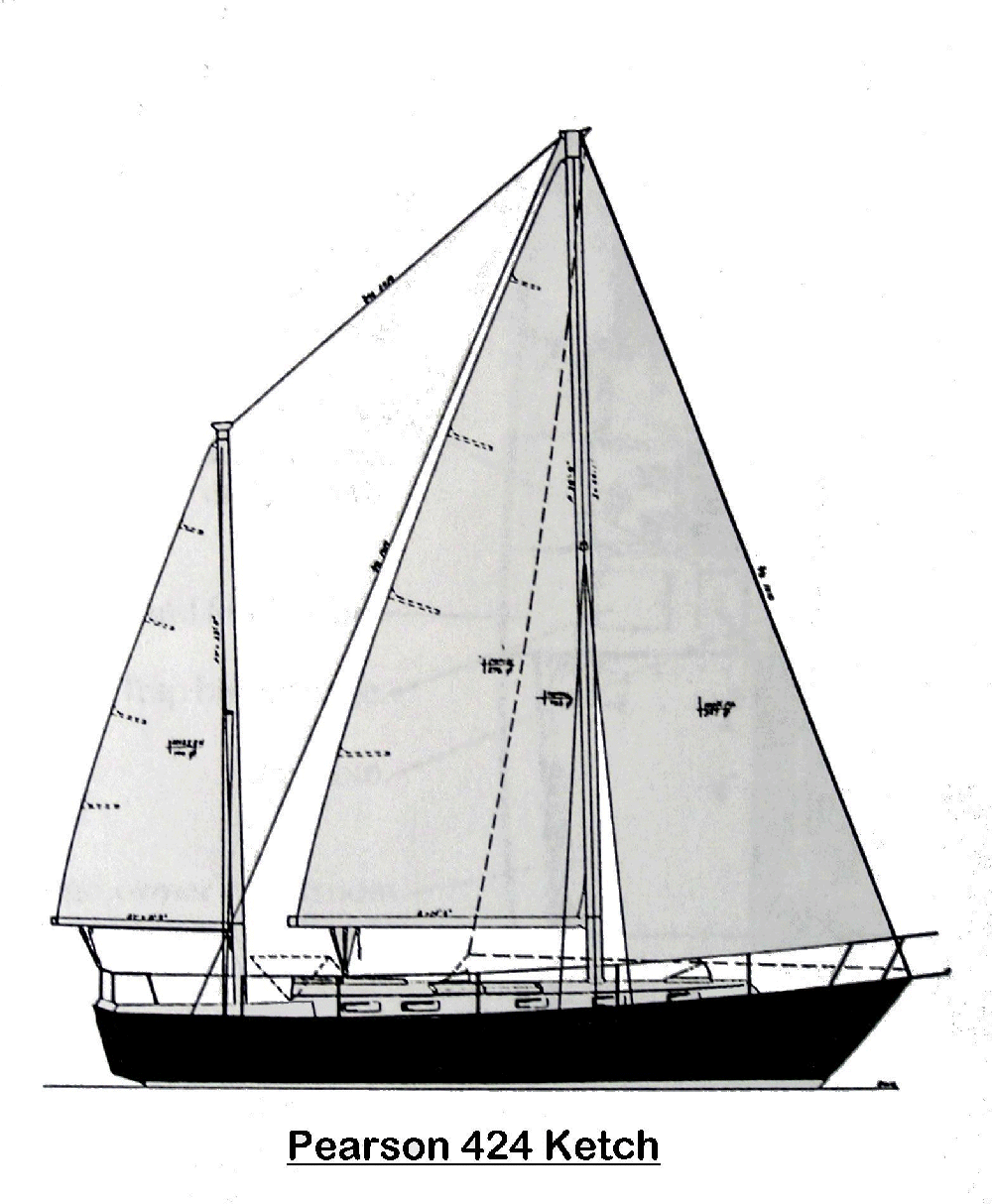

Ketch
Modified fin; skeg-hung rudder
17 (of around 225)
Bristol, Rhode Island, USA
|
LOD:
LWL:
Beam:
Draft:
Displacement:
Ballast:
Mast Clearance:
Sail Area:
Wetted Surface: |
42'4”
33’8”
13'
5'3" (5'6" cruising)
23,000 lbs.
7,634 lbs. lead
48’10”
723 sq. ft.
372 sq.ft. |
|
Mechanical
Yanmar
4JHE 54 HP diesel, new 2007
Paragon transmission, newly rebuilt 2007
Walter RV-20V Drive, 2:1 reduction, rebuilt '07
Fixed 3-blade propeller, 20LH11 = 20" dia., left-hand, 11" pitch
Prop Shaft: 1½" bronze
Tankage
Diesel: 80 gallons + 20 in jugs
Water: 100 gallons + 70 capacity unused in forward
tank
Holding: 28 gallons
Ongoing professional refit
and upgrades, 2007-2015
|
|
